P 524X

$24,499.00Rec. retail price incl. GST SKU: 970601501

Power/fuel typePetrol
Cutting width, min112 cm

Product description

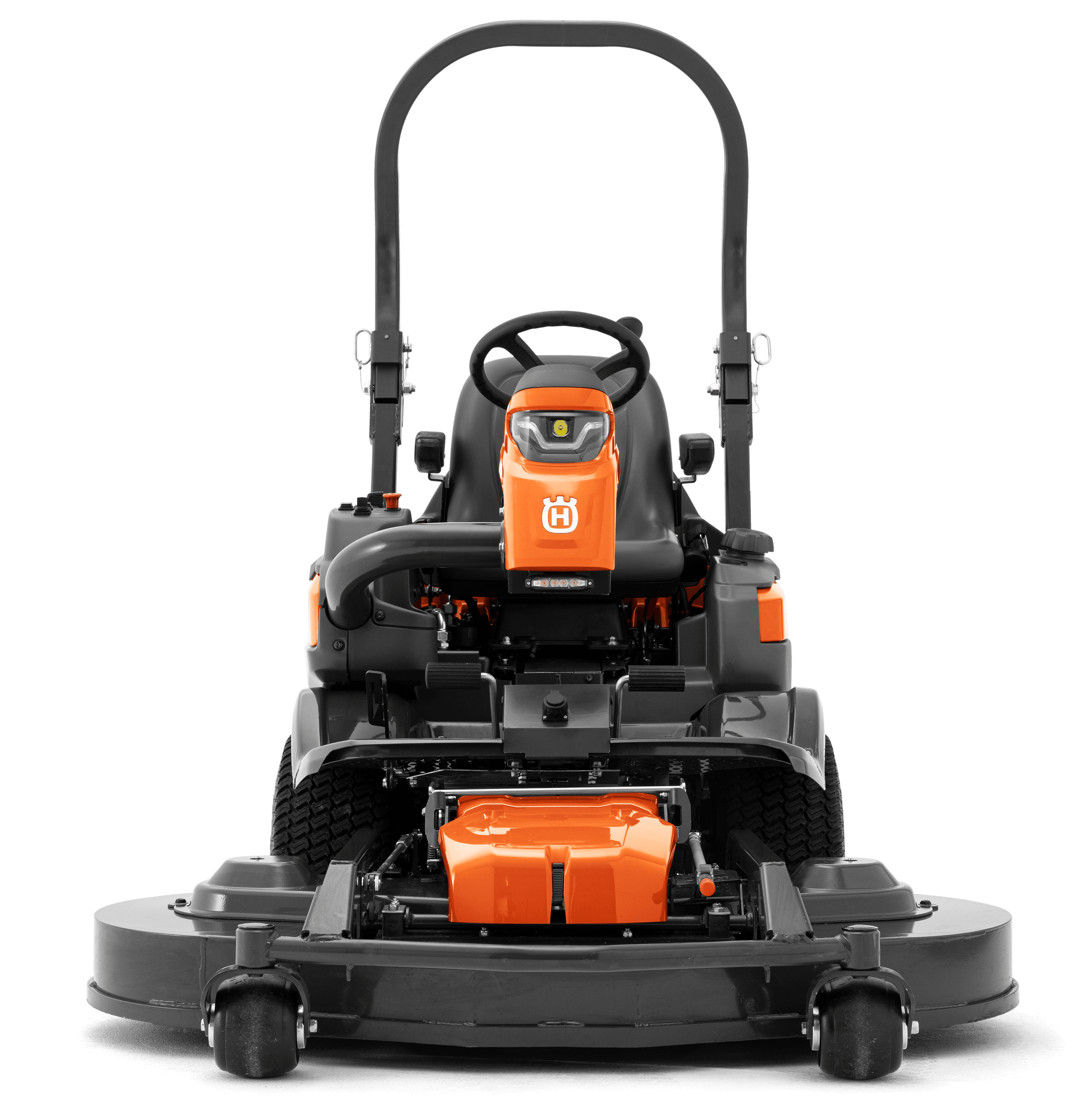

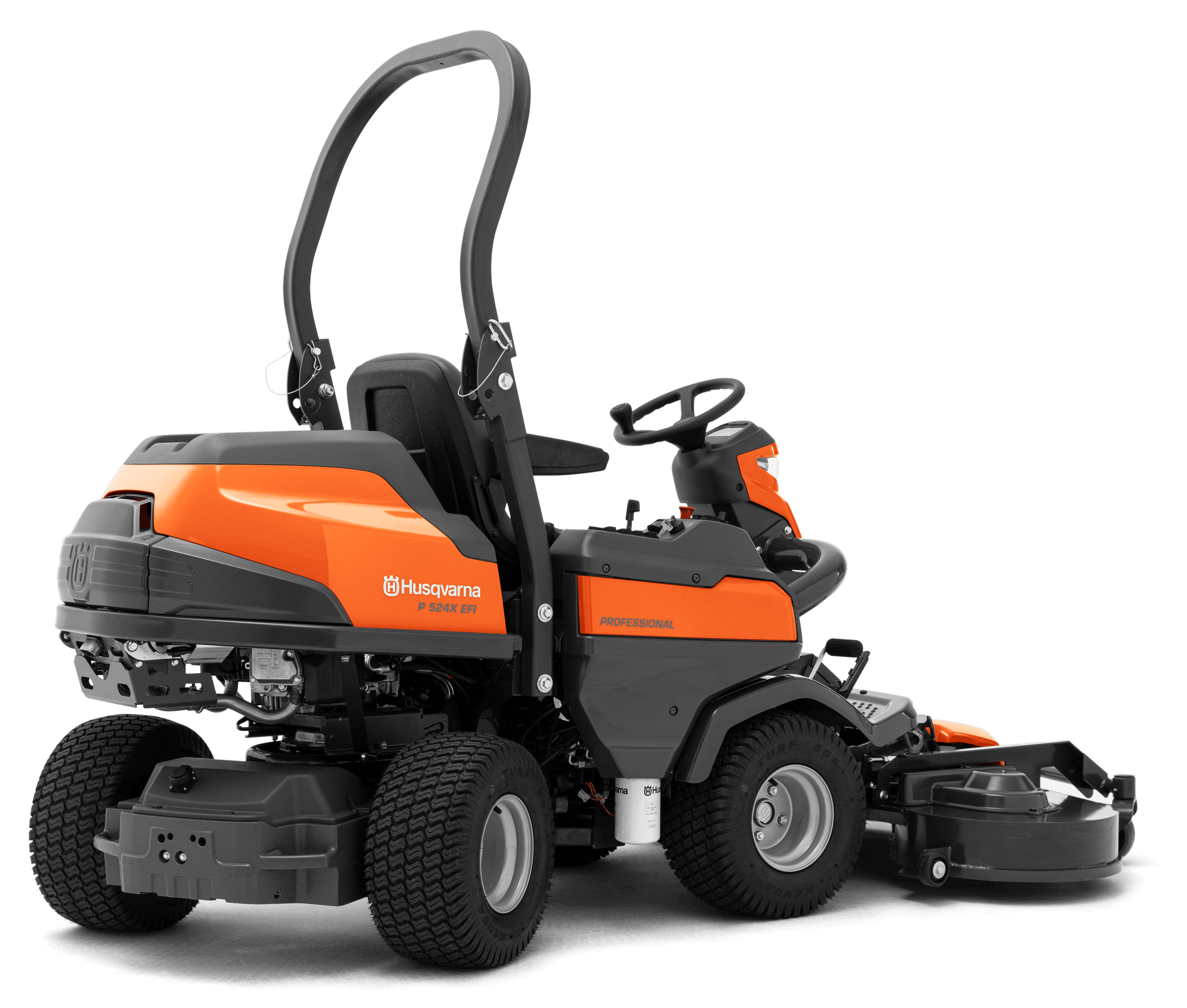

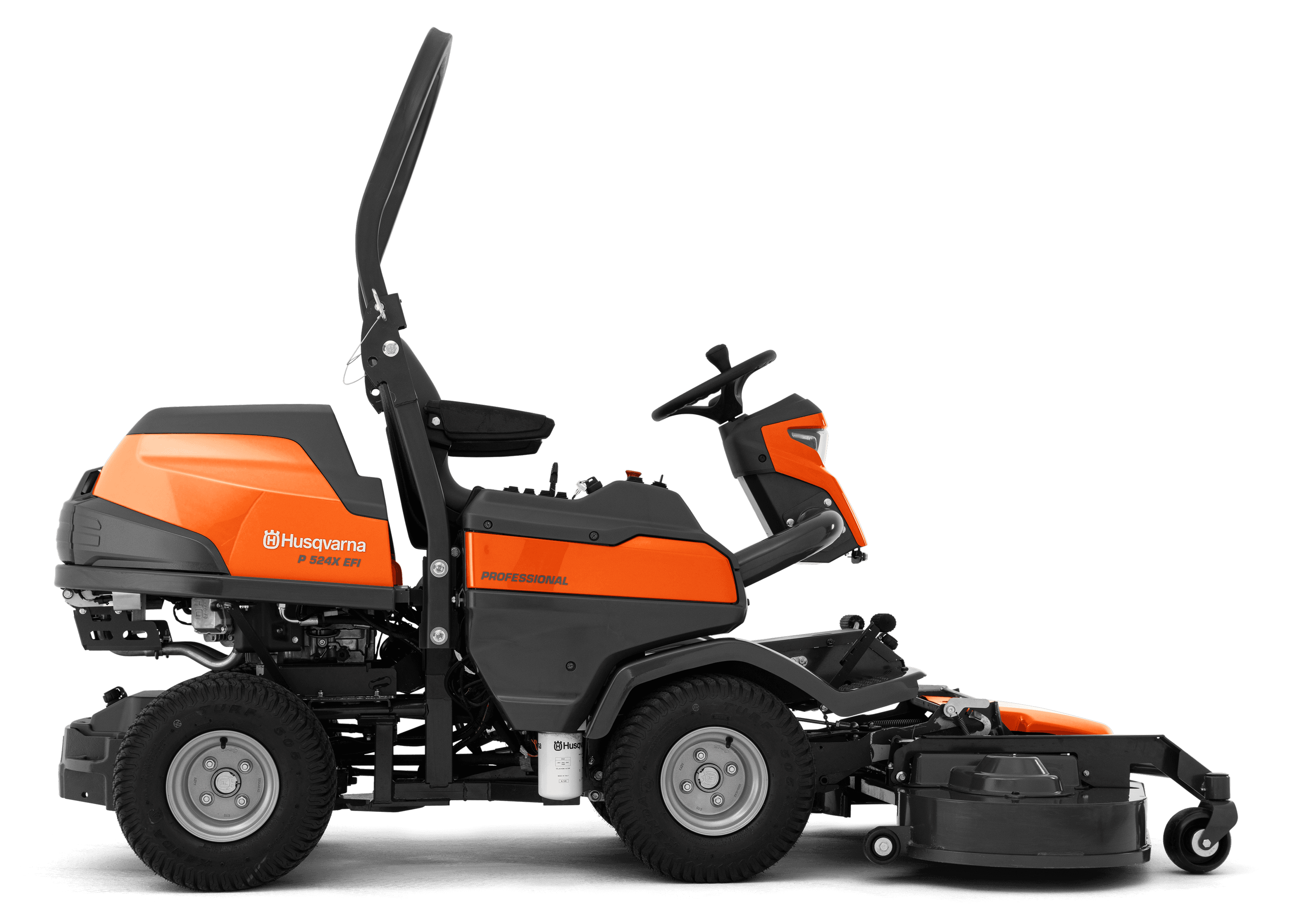

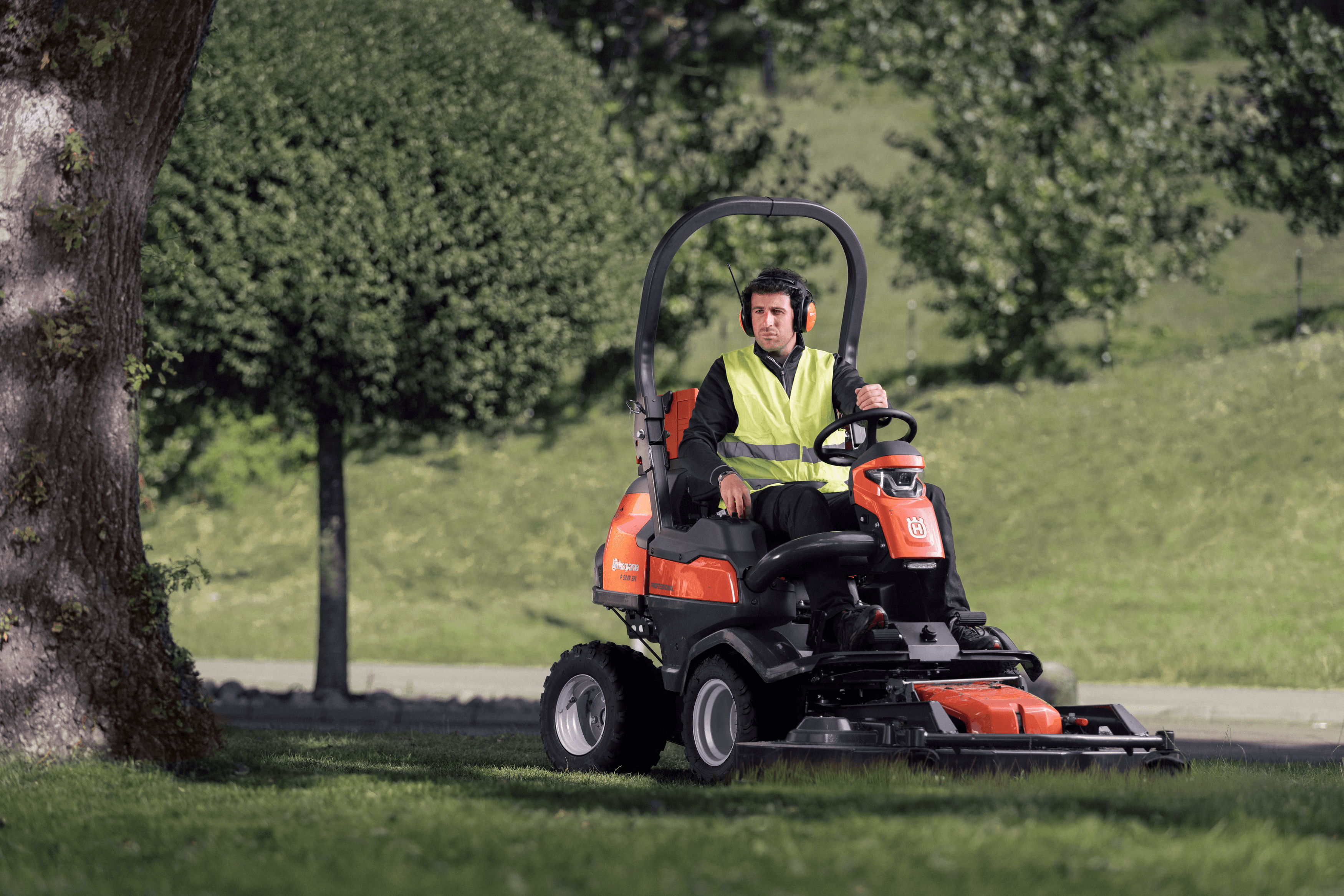

Husqvarna P 524X is a front-mounted petrol ride-on lawn mower, built for commercial use. Compact and versatile with articulated steering, All-Wheel Drive and a powerful engine from Kawasaki. An electric attachment lift enables efficient and comfortable work. Intended for facility management companies, sports clubs and for contractors who want a manoeuverable ride-on solution for year-round duties in complex areas. Delivered deck-less, can be equipped with 112 and 122 cm Combi cutting decks.

Product Information

Features (19)

Patented articulated steering

Min. clearance circle by articulated steering

The machine’s low centre of gravity in combination with the high-performing AWD-system gives excellent slope and hillside stability. image

All-Wheel Drive (AWD)

Excellent hillside driving performance

Integrated connectivity

The model has a built-in connectivity module which easily can be connected with Husqvarna Fleet Services™.

Heavy-duty steel ladder frame with reinforcements combined with an open design for excellent serviceability. image

Durable ladder frame

Heavy-duty, durable steel ladder frame

Heavy-duty hydraulic-cylinder power steering makes driving less strenuous. image

Hydraulic power steering

Hydraulic power steering for increased comfort

A wide range of cutting decks and attachments will make your front mower exceptionally versatile, all year round. image

Versatile usage

Accessories for versatile year/round usage

Quick coupling

Easy tool exchange by unique quick coupling

The front-mounted cutting deck gives an excellent overview of the working area, enabling precise, close-up trimming. image

Trimming ability

Front-mounted cutting deck for precise trimming

Mowing accessibility

Unbeatable mowing accessibility

Ergonomic operation

Ergonomic operator's interface

Operator environment designed around the user. The control panel is raised with all controls ergonomically positioned for easy access. The most frequently used controls are positioned at the front while controls used less often are positioned further back. image

Easy-access controls

Operator environment design around the user. The control panel is raised with all controls ergonomically positioned for easy access.

16 inch wheels

Equally sized wheels for a comfortable ride

Dual LED lights

Dual LED lights for enlarged lighted area and safer operation in darker conditions.

Electrical front- and rear outlets for power and control of attachments. Simple installation and only needs to be installed once, fits all attachments requiring electric control. Kit includes power outlet, electric wiring and switches for the control panel (available as separate accessory). image

Power outlet

Electrical front- and rear outlets for power and control of attachments (available as separate accessory).

For improved durability the complete rear wagon is one piece of ductile cast iron. image

Cast iron rear wagon

Durable cast iron rear wagon

The Husqvarna X series facelift features several improvements. These updates include a more reliable, upgraded PTO belt system, a hardwearing foot plate made of corrugated steel sheet and a more compliant and robust pedal system. For greater rigidity and reliability, the position for the cutting height adjustment has also been moved to the cutting deck. image

Improved robustness

The X series facelift features several improvements, like an upgraded PTO belt system, a hardwearing foot plate made of corrugated steel sheet and a more compliant and robust pedal system.

For easy maintenance and longer lifetime. image

Greasable mandrels

Greasable mandrels for easy maintenance

Service postion on the cutting deck facilitates cleaning and service. image

Service position

Service position for easy deck maintenance.

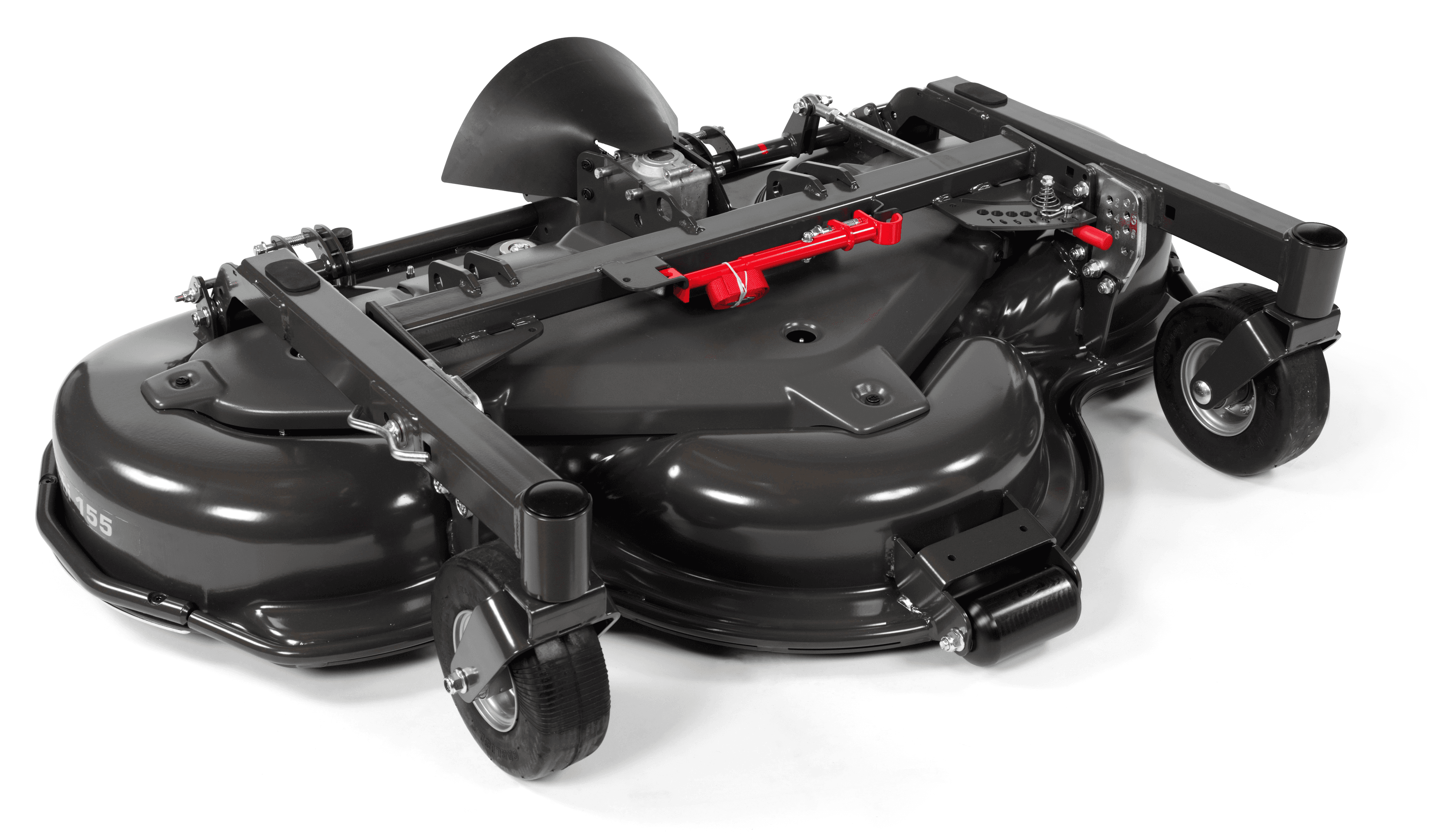

Prepared for the high-performing and unique Combi deck. Designed to deliver a cutting result in top-class, offering two cutting methods in one deck; mulching or rear discharge (mulch plug removed). Stamped from a single piece of steel plate in a flow-optimized design to deliver best in class mulch result. image

Ready for Combi deck

Designed to deliver a cutting result in top-class, offering two cutting methods in one deck; mulching or rear discharge (mulch plug removed).

Specifications	Art No: 970601501
Output shaft power	13.9 kW
Weight (excl. cutting equipment)	433 kg
Cylinder displacement	726 cm³
Weight (complete product w/o side packed articles)	433 kg
Fuel tank volume	21 l
Sound pressure level at operators ear	90 dB(A)
Base machine, height	122 cm
Base machine, length	206 cm
Base machine, width	98 cm
Battery capacity	24 Ah
Battery pack weight	7.2 kg
Battery voltage	12 V
Cutting height max	75 mm
Cutting height min	25 mm
Cutting width, max	122 cm
Cutting width, min	112 cm
Fuel consumption	334 g/kWh
Fuel tank volume	5.55 gal (US)
Gross weight towed	200 kg
Ground clearance	130 mm
Net power at preset rpm	3000 rpm
Net power at preset rpm Energy	13.9 kW
Oil capacity	2.1 l
Sound power level, guaranteed (LWA)	105 dB(A)
Sound power level, measured	104 dB(A)
Speed forward max	13 km/h
Speed reverse max	9 km/h
Uncut circle	50 cm
Vibration level seat	0.5 m/s²
Vibration level steering wheel	2.5 m/s²
Wheelbase	100 cm
